Custom Electronic PCB Design, PCB Assembly Service

FOB Reference Price:Get Latest Price
US $3-10 / Piece | 1 Piece/Pieces ANY QUANTITY (Min. Order)
Supply Ability:
600000 Square Meter/Square Meters per Year
Port:
DALIAN PORT
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
OEM ODM
Model Number:
Customized
Base Material:
FR-4/cem-3/FR-1
Copper Thickness:
1oz, 0.5oz~4oz
Board Thickness:
1.6mm, 0.2mm-4mm
Min. Hole Size:
0.25mm
Min. Line Width:
0.1mm
Min. Line Spacing:
0.1mm4mil)
Surface Finishing:
hasl
Product name:
pcb assembly service
Application:
Digital Equipment
Service:
OEM Services Provided
Certificate:
ISO/UL/TS16949/RoHS/TS16949
Solder mask:
Green. Red. Blue. White. Black.Yellow
Material:
FR4 CEM1 CEM3 Hight TG
Type:
Round PCB, Square PCB, Dvr Pcb Board
Silk Screen:
White, Black
Layer:
1-24 Layers
Packaging & Delivery
Packaging Details
OUTSIDE: HIGH QUALITY PAPER CARTON
INSIDE: ANTI-STATIC PLASTIC/VACUUM/BUBBLE BAGS.
THERE ARE ALSO COULD PUT THE MIDDLE PAPER BOARD IN THE CARTON
Delivery Time
3-14 DAYS AFTER ALL THE DATA WAS CONFIRMED

Custom Electronic PCB Design, PCB Assembly Service



Product Description
 pcb assembly service Specification
Product Name  pcb assembly service
Type  Rigid, Flexible, Rigid-Flexible
Material  FR4, CEM1, CEM3, Aluminum, High Frequency Board,
Layer  1,2,4,6...24Layer

Shape

  Retangular, Round, Slots, Cutouts, Complex, Irregular
Cutting  Shear, V-score, Tab-routed
Board Thickness  0.2-4mm, regular 1.6mm
Copper Thickness  0.5-4oz, regular 1oz
Solder Mask  Green, Red, Blue, Yellow, etc.
Silk Screen  White, Black, etc.
Silk Screen Min Line Width  0.006" or 0.15mm
Min Trace/Gap  0.1mm or 4mils
Min Drill Hole Diameter  0.01",0.25mm or 10mils
Surface Finish  HASL, ENIG, OSP, etc.

DHI PCBHDI PCB Boards contain blind and/or buried vias and often contain microvias of .006 or less in diameter. They have a higher circuitry density than traditional circuit boards.
High TG PCBThe general TG plate is more than 130 degrees, the high TG is generally greater than 170 degrees, and the medium TG is more than 150 degrees.

High Frequency PCB

RO4003C, RO4350B, Ro3003, Ro3010, and RT5880 etc with frequency typically in the range from 500MHz to 2GHz, products are applied to power devider,radar,satellite system, mobile phone reception base station and so on.

Carbon Ink PCB

As carbon ink pcb has very good resistance value that will help supply good conductivity. Carbon ink pcb is widely used in automotive filed, medical electronics,communication equipment and so on.
Special Material PCBRogers4350,Rogers4003,Arlon 25FR,25N for Ceramic PCB powder filling, Rogers series, Taconic series,Arlon series,Nelco series ect for PTFE high frequency material.
Thick Copper PCBEnsure that there is enough thick copper plating in the hole to ensure that the resistance is within the range of the process requirements. 70% of the circuit board to complete the use of 35um of copper foil thickness, some will use 70um , 105um ,140um copper thickness and so on.

Our Main Products

pcb assembly service Certifications





Our Factory

 PCB Factory and Machine

Dalian BLD Eletronic Co., Ltd was established in 2002. We mainly offer high-precision single-side, double-side, multi-layer printed circuit boards, LED aluminium printed circuit board, customers components procurement and PCB assembly (SMT) business.
Now the production capacity of our factory has reached 600,000 square meters annually. And our products apply far and wide in many fields such as communication, computer, mobile phone, eletronic equipment and electrical appliance.
We established an assembly line in 2010, all the assembly machines were purchased from Pnansonic, which can assemble the components of 0201. The production capacity of the PCBA are 2,000,000 points per day.



We have two large plate warehouses, our plates contain different thickness, different varieties, different copper thickness, which is able to meet different requiremets of our customers

Drill is very important, so we have a perfect drill management area, and a machine 24 hours polished to ensure the quality of the drill bit.



We use the VPC (Vertical Continuous Plating) to ensure that the plated surface is smooth and uniform.

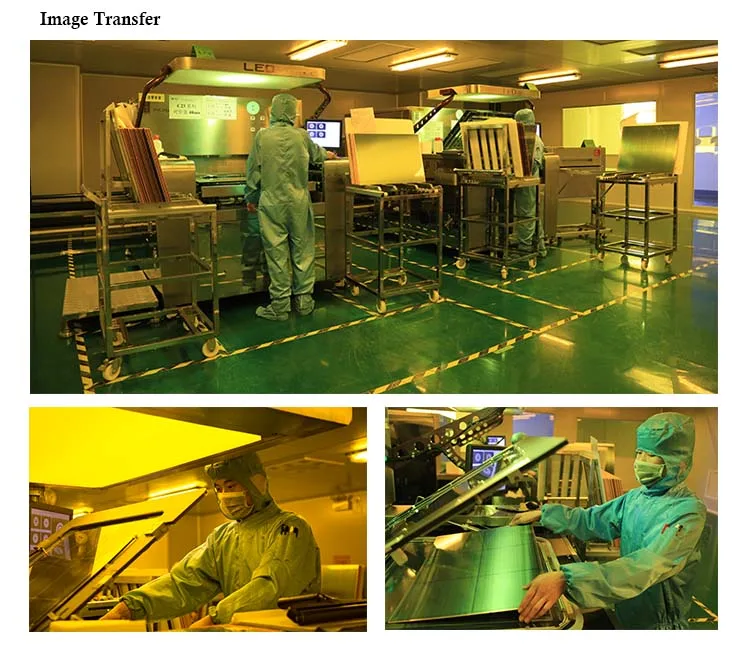

First we will exposure the Gerber circuit onto the film and then we will manufacture the PCB exactly the same according to the film. In the meanwhile, we maintain our workshop clean all day long to ensure the accuracy of exposure.

For multi-layer sheet, we use AOI equipment for inner inspection to ensure the inner quality.

PCBA Capability

ItemCapabilityItemCapability

Solder Paste

Printing

Accuracy: ±0.025mmWave Soldering
Max. speed: 150mm/secNitrogen source: external
PCB max. area: 400*310mmPCB max. size: 400*330mm
PCB thickness: 0.2-6mmTemperature accuracy: ±1°C
SMT Accuracy: ±0.03mmLead free compatible
Speed: 0.17sec/pc
PCB max. area: 350*350mmAOI

Available part:

0201 chip to 35*35mm

Accuracy: ±0.0024mm
Accuracy: ±0.05mmSpeed: 5in² /sec (60FOV/sec)
Speed: 0.048sec/pcPCB max. area:300*300mm

PCB max. area:

350*350mm

Available component:

0201 chip and fine pitch

Available part:

0402 chips to 14mm (H 12mm)

X-ray  Inspection

Minimum SMD resistor and

capacitor: 0201

BGA void

(0.5mm distance between Ball)

Minimum BGA R-VTx: 0.15mmSolderability inner shielding

Reflow

Soldering

Nitrogen source: externalBGA Rework
PCB max. size: 400*330mmNitrogen source: NA
Temperature accuracy: ±4°CPCB max. size: 350mm
Zones: 8Temperature accuracy: ±1°C
Lead free compatibleLead free compatible



Our Services

Now we have been a factory which can provide one-stop service, from the PCB production, the components purchasing to the components assemble.

Exhibition & Client

 Exhibition and Clients

Packaging & Shipping

 Our company is not only trying to give customers a good product, but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.

Common packaging:
PCB:  Sealed bag, Anti-static bags, Suitable carton.
PCBA:  Antistatic foam bags, Anti-static bags, Suitable carton.

Regular Cartons Specification.
No. Dimension (L*W*H)
Small Size :         33cm*28.5cm*18.5cm
Medium Size:     44.5cm*30cm*15cm
Big Size:              51.5cm*32.5cm*17.5cm

Customized Cartons:
Carton outside according to the requirements of customers printed the name of the customer address, mark, the customer needs to specify the destination and other information.
